General

This article explains how to import original ATR source content into Yonder and which prerequisites must be fulfilled before starting the process.

The import function is designed specifically for native ATR EDORA XML files delivered as a structured ZIP package. Yonder validates the file structure and metadata during import and automatically generates the document framework based on the provided ATR content.

To successfully complete the import, you must:

• Create a new document of type “ATR EDORA XML”
• Upload only native ATR XML files (other formats are not supported)

During the import process, the system:

• Reads the ATR metadata
• Creates or updates required aircraft entries in the Aircraft Fleet domain
• Optionally generates additional modules (such as Front Page, Transmittal Letter, Aircraft Allocation Table, and List of Modifications)
• Produces a downloadable import log for validation and traceability

Prerequisites

• ATR EDORA XML provided as a ZIP file
• Access to the Admin Console
• Appropriate permissions to create documents and revisions

ATR ZIP file

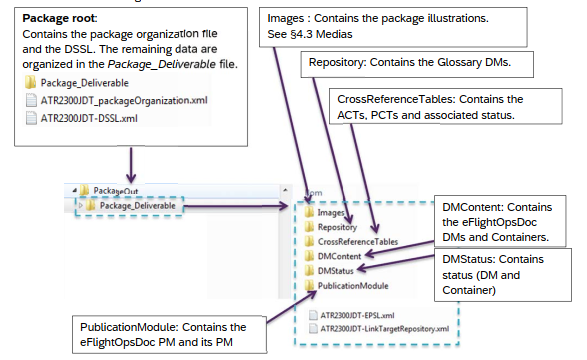

To successfully import ATR content, the designated customer representative must prepare the ATR content in one ZIP as described in the ATR XML AUTHORING GUIDE:

The ZIP file must contain a Package_Deliverable folder that contains the other files as described above.

Import the source files

To import original ATR content you need to set up a new document.

Only native ATR XML can be imported for documents of the type ATR EDORA XML.

Import Process – Step by Step

Follow these steps to import a new ATR document into Yonder:

1. Navigate to the Admin Console.
2. Create a new document.
3. Enter the document name
4. Select the document type: atr-edora.
5. Click Create.
6. Select Import Document.
7. Choose the ATR XML ZIP file.
8. Click Upload to start the import process.

Once the import is complete:

• Review the import log (you may download it if needed).
• Close the pop-up window.
• Click Continue to finalize the import.
• Release the document to make it available.

Important Note

• Only ATR EDORA XML ZIP files are supported.
• Always verify the imported content before releasing the document.
• If the ZIP file cannot be imported, this may be related to the known issue referenced above.

Importing a New ATR Revision

To import a revision of an existing ATR document:

1. Open the existing document.
2. Create a new revision.
3. Enter the revision name (for example: 12 AUG 25).
4. Select the revision date.
5. Click Import Document.
6. Select the ATR XML ZIP file.
7. Click Upload to begin the import.

Once the import is complete:

• Review or download the import log if required.
• Close the pop-up window.
• Click Continue to finalize the revision import.
• Release the document revision.

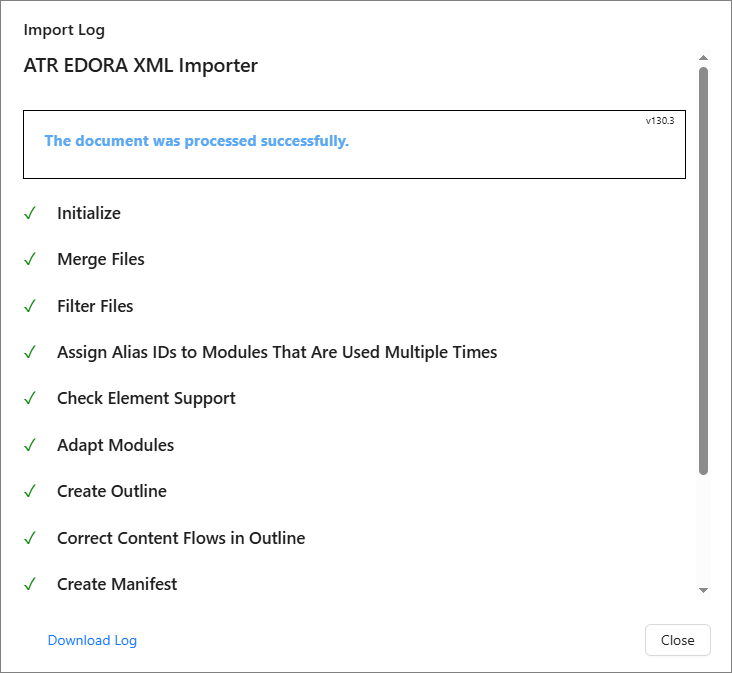

Import Log

Upon import a log file will be generated.

The log file may be downloaded for later use by licking on Download Log.

Important Note

The import log should always be downloaded before closing the dialog window, as it cannot be accessed afterward and for future reference. Once the dialog box is closed, the log file will no longer be accessible. The file will be saved to the default folder on the local drive.
